Silicone Gaskets Adhesive

Silicone Gaskets Glues for bonding silicone rubber with silicone rubber

Product Specification:

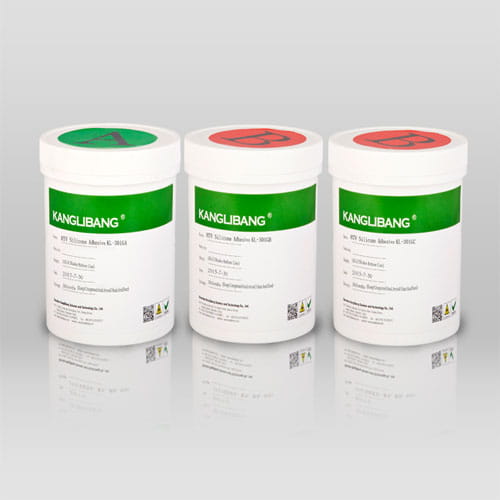

Model No. : KL-301G(ABC)
Minimum Order Quantity :   2KGS
Lead Time:5-7Days
Payment Terms:   T/T .Paypal , Western Union
Package:   1KG/Bottle
Tel: +0086-138 -2374 -7978
Fax: 0086-755-81478372
E-mail: export@klbsilicone.com


Silicone Gaskets Sealant


Silicone to Silicone  Bonding Adhesives



Applications


 Exclusively designed for bonding extrusion type peroxide cured silicone rubber gaskets ,clear transparent appearance which swiftly cures to be silicone polymer  in high temperature environment ,offering permanent bond of the silicone rubber joint cord.

bonding silicone to siliconebonding o ring gaskets




Product Advantage


 Strong Bonding Strength

Strong silicone Bonding Strength



                                                                                   Fast (Short) Time Bonding

                                                                                                        In 8-15 Seconds Cure

                                                                                                         bonding machine


High Temperature Tolerance

Constant 250 degree test

baking


                                                             Waterproof  Capacity

                                                             bonding si


FDA


Product Details


 Before curing:

 Mix viscosity(25℃),mΡa.s:             50000

 Specific Gravity(g/cm³):                 1.10

 Operable time(25℃),h:                  4.0

 Curing time(80℃),min.:              30-60


 After curing:

 Tensile strength(Mpa):                  4.0

 Hardness(Shores A):                   35±5

 Elongation(%):                         300

 Adhesive property:             ≥2.0(A1-A1,cohesive failure )

 Volume resistance(Ω • cm):             1×10

 Dielectric strength(KV/mm):              20



Processing


 1.Spread the adhesive on  a thin sheet, coating thickness less than 0.5mm(evenly distribute the adhesive  to ensure  dipping amount the same )

1



 2.Preheat the rubber cords against the hot mold less than 4 seconds


2


 3.Dip both sides of silicone gaskets ends with tiny bit of adhesives from the sheets

33

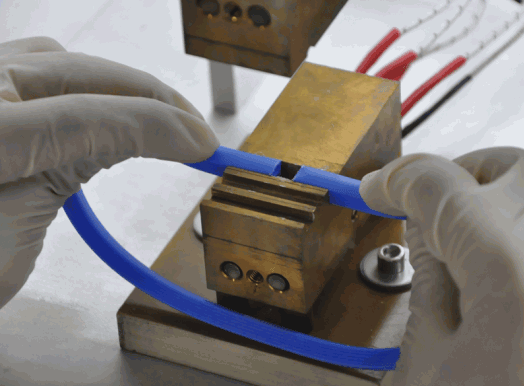

 4.Swiftly push in the two the cord joints by your hands (make sure the adhesive not get cured before the two cord end meets ),

keep the horizonal pressure until the upper mold close down to secure full contact of the bonding area.

4

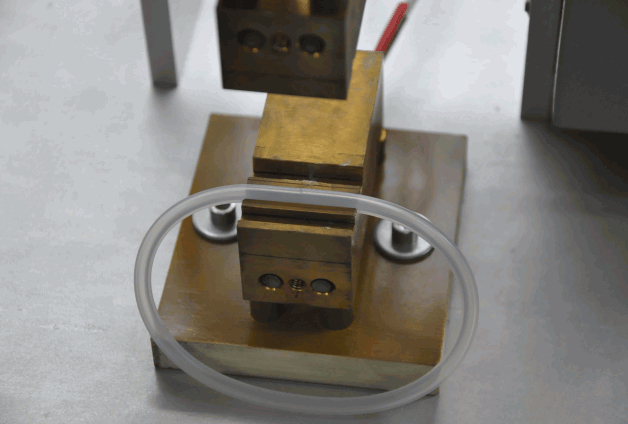

 5.Close the mold for 8-10seconds with temperature 175-180 degrees, enabling the adhesive to deliver optimized bonding

 strength after absorbing sufficient heat.

5


 6. The bonding strength get optimised after the finished silicone gaskets cool down


6

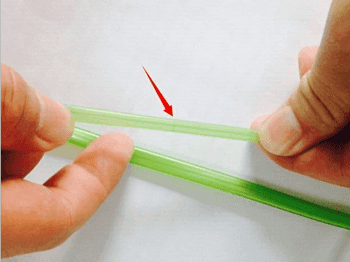

 As you see the bonding traces remains after the bonding


7


 It is alway a good idea to customer  if they can add about 1%~2%  of the silicone color pastes  to color the adhesive

so bonding traces will be undetected.


 7
