HTV Silicone Overmold Glass - Products
HTV Silicone Overmold Glass
HTV Silicone Overmold Glass

Silicone Primer CL-26AB-8 Silicone primer for htv silicone overmolding glass         CL-26AB-8, Silicone primer, is mainly applied for platinum curing agent-added HTV /LSR silicone overmold onto PA(Nylon), Meta

Product Specification:
Model No. : CL-26AB-8
Minimum Order Quantity :   2KGS
Lead Time:5-7 Days
Payment Terms:   T/T , Western Union , Paypal
Package:   1KG/Bottle
Tel: +0086-135 0281 9396
Fax: +86.755.8147.8872
E-mail: sales@bondsil.com

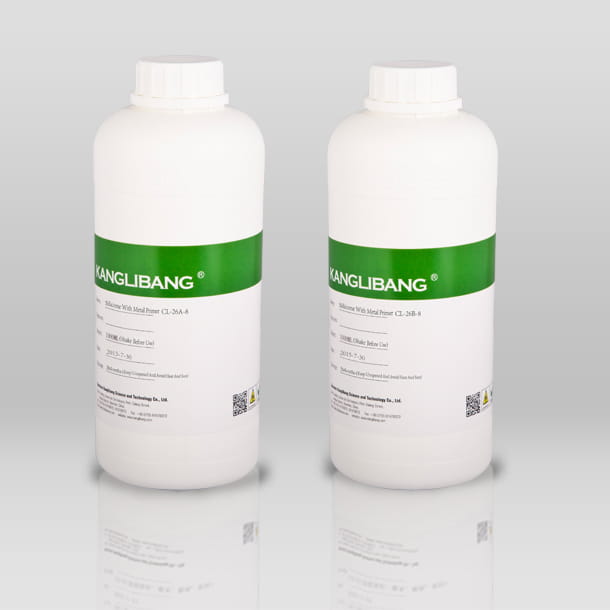

Silicone Primer CL-26AB-8
Silicone primer for htv silicone overmolding glass







Product Details



CL-26AB-8, Silicone primer, is mainly applied for platinum curing agent-added HTV /LSR silicone overmold onto PA(Nylon), Metallics, Polyester,

PET, Bakelite, Epoxy, FRP(Fibre glass) etc, which will result in a tight bond after molding process.

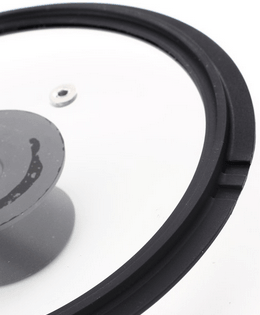

HTV Silicone overmolding Glass





Si+Glass









Product Advantage



Good adhesion Strength













4 Hours water- boiling Tests



100















No primer trace on finished silicone products









Waterproof Function















Product Specifications



Appearance:Transparent or Pasty gel

Ratio:A:B=1:1

Solvent:Component solvent

Viscosity:<20mpa.s



Specifical gravity : 0.95 g/cm3

Shelf life:Six months without cover opened(25℃).





Processing



1,Coating the CL-26AB-8 on the edge of the glass



2,Direct the LSR silicone on the edge the glass in the injection moulding machine ,

apply 120~180℃ degrees for 1-3 minutes to vulcanize the silicone rubber .



3,Trim the rough edges and wash clean the glass covers



4, Place the glass covers in the ovens , apply 180~220℃ for 1- 2 hours , a silicone glass cover is done made .

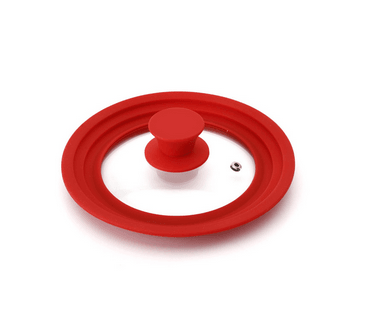

Si+glass2





Attention



1, Please cap its cover immediately after use to avoid volatilization.

2, Store the used and unused adhesive in separate way to lengthen the shelf life.

3, After the primer coated on the substrates, leave it volatilize completely before entering the mold, otherwise, there will be bubbles in the finished products

4, Wash clean the substrates to remove dirts or oil to avoid bad adhesion.

5, The PA substrates is water-absorbent, it must be dried up before molding with silicone. Better bake with 150 degrees for 1-2hours.





Sorry,Here is the product description, there is no data!
Sorry,Here is the product notes, there is no data!
