Bonding LSR Silicone To Stainless  - Silicone Insulator Primer
Bonding LSR Silicone To Stainless

Product Specification:

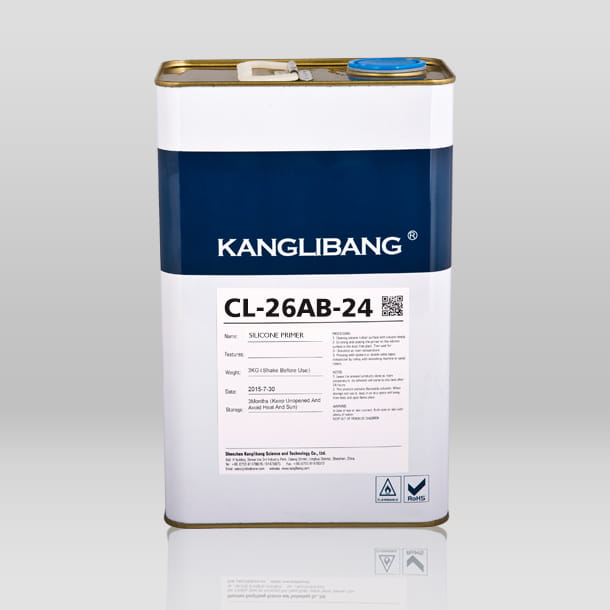

Model No. : CL-26AB-24
Minimum Order Quantity :   2KGS
Lead Time:7-10 Days
Payment Terms:   T/T ,Paypal , Western Union
Package:   1KG/Bottle
Tel: +86.755.8147.8876
Fax: +86.755.8147.8872
E-mail: sales@bondsil.com



Applications

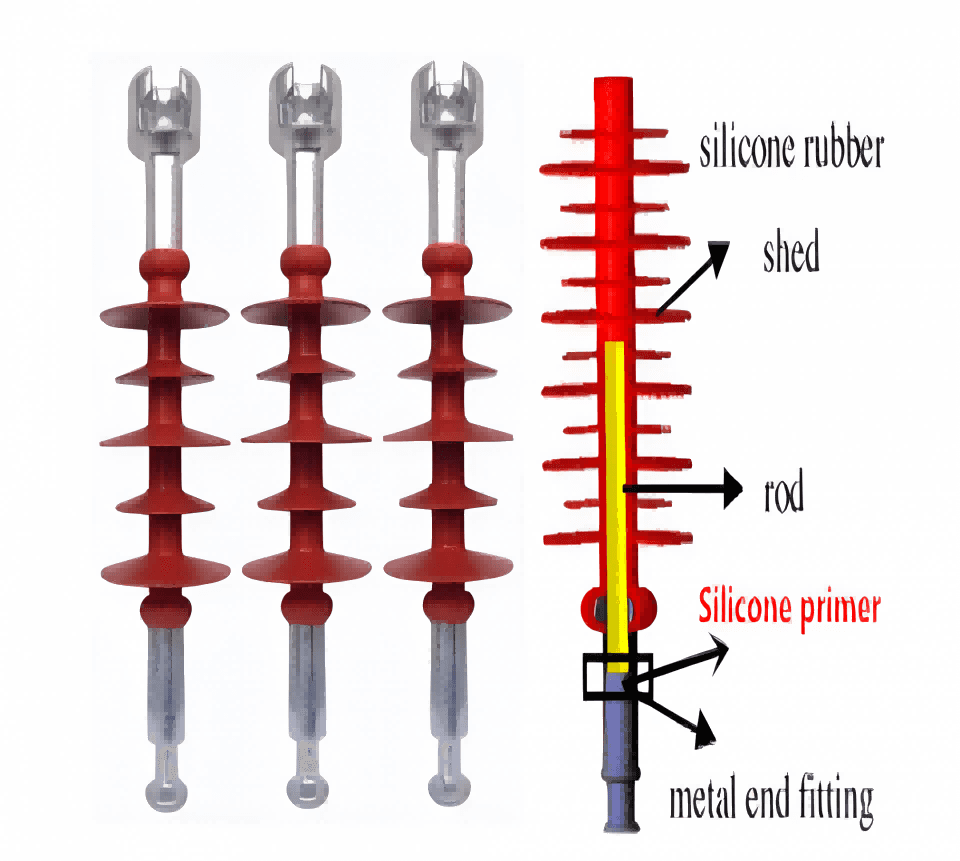

CL-26AB-24, Silicone primer, It is applied for both unvulcanised platinum system and peroxide-system silicone overmold silicone insulator  metallics, PA, ,PET(Polyethylene terephthalate glycol ester) after compression /injection molding process.



silicone insulator  glue



Product Advantage





High Tear Strength

The Silicone rubber is damaged when tearing from Aluminium

LSR Silicone overmolding Aluminium

Adhesion Strength is over 2Mpa, No bonding failure

ISO9001 , SGS certified

No Bubbles

      Making your silicone products 99% ok rates

               No primer traces after the silicone products is made



Labour costs saving

Easy processing, Can dip dry , No corrosion to Aluminium

Liquid silicone adhesive



           Stable Quality

                  3 Times standard tests

                  zero silicone falls aparts from substrates

              High Temperature Tolerance

Temperature tolerance for Second-cure of silicone rubber

at 200 degrees for 4hours

Si



Product Specifications



Color :Transparent Liquid or Gel

Component:A:Gel , B:Platinum Catalyst

Mixing Ratio:A:B=1:1(Use up within 4hours after mixture)



Processing



1, Treat the substrates with blast sanding, polishing or wash with industrial alcohol.

2, Mix completely the A and B with ratio 1:1 and apply the primer by dipping, brushing, spraying or silk screen printing method.

3, Leave dry in room temp for 30 minutes or baking at 110-130℃ for 15-20mintes.

4, The primer treated substrates are processed within that day.

5, Foward the unvulcanized silicone rubber with primer-coated substrates in mouding process or hot air vulcanization.





Attention



1, Please cap its cover immediately after use to avoid volatilization.

2, Store the used and unused adhesive in separate way to lengthen the shelf life.

3, After the primer coated on the substrates, leave it volatilize completely before entering the mold, otherwise, there will be bubbles in the

 finished products

4, Wash clean the substrates to remove dirts or oil to avoid bad adhesion.

5, The PA substrates is water-absorbent, it must be dried up before molding with silicone. Better bake with 150 degrees for 1-2hours.





OUR ADVANTAGEService



Sorry,Here is the product description, there is no data!
Sorry,Here is the product notes, there is no data!

TDS: CL-26AB-24
