Self Adhesive LSR KL-F6060AB Shore Hardness (A):60±2 - Self adhesive liquid silicone
Self Adhesive LSR KL-F6060AB Sh...

KL-F6060AB,Self adhesive LSR , is addition type LSR , It has strong bond to thermoplastics like polycarbonate and does not stick to the mold featuring wi...

Product Specification:
Model No. :
Minimum Order Quantity :   20KG
Lead Time:5-10days
Payment Terms:   TT/Paypal

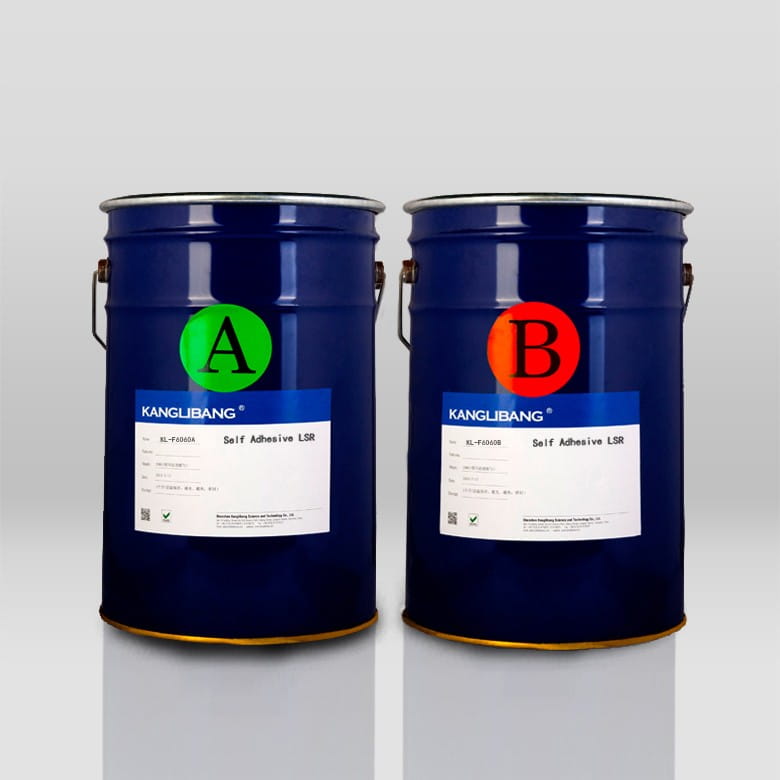

Package:   20kg/barrel ,200kg/barrel
Tel: +86.755.8147.8876
Fax: +86.755.8147.8872
E-mail: sales@bondsil.com

Self adhesive LSR  KL-F6070AB

LSR & PC/PET

KL-F6060AB,Self adhesive LSR , is addition type LSR , It has strong bond to thermoplastics like polycarbonate and does not stick to the mold featuring with fast curing speed .

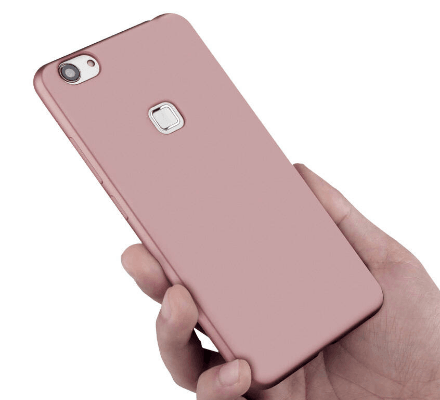

※Wireless chargers ,silicone precision electronic products

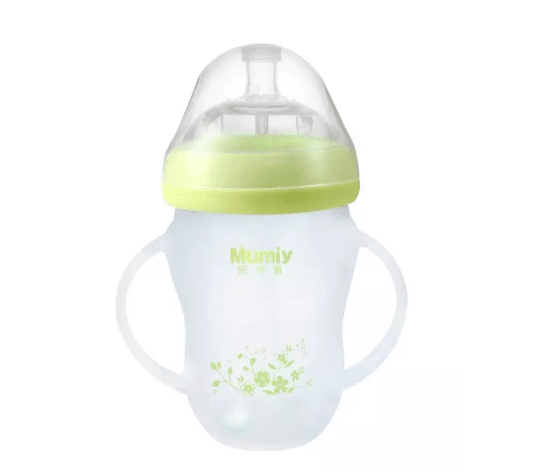

※Baby products

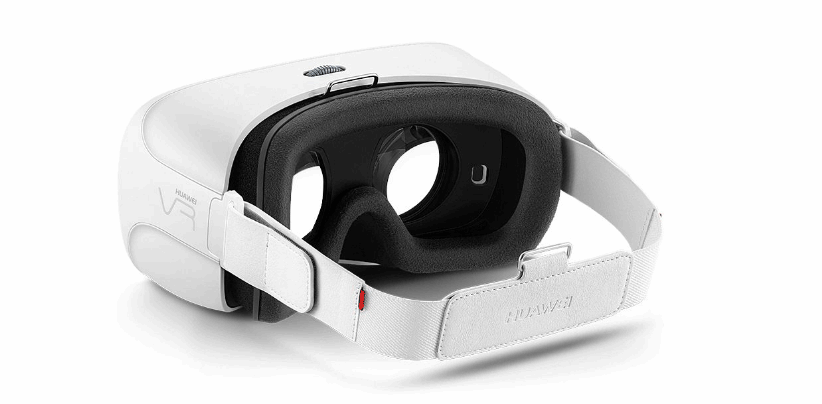

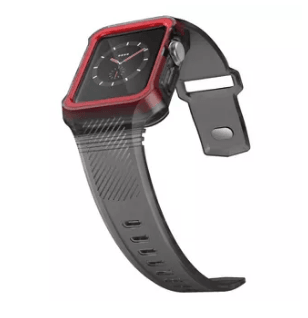

※3C electronic products

Appearance A: Transparent gel   B: Milky white gel
Viscosity(mPa.s) GB-T 11409.8-1989 A: 4300000   B: 5500000
Shore Hardness (A) 60±2
Tensile Strength(Mpa) ≥7.0
Tear strength(kN/m) ≥25
Elongation at break(%) ≥300
Curing condition TC10: 120℃*42S
  TC90:120℃*92S
Specifical gravity(g/cm3) 1.10±0.02
※Standard Description Viscosity is tested under room temperaturer 25℃

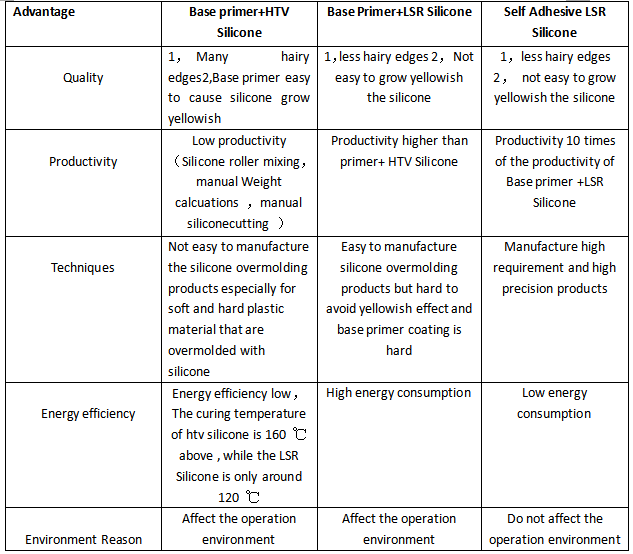

Maximise the productivity and reduce labour costs

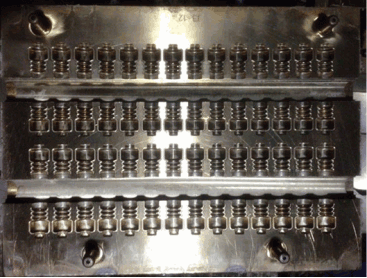

  Releasable from the metal mold

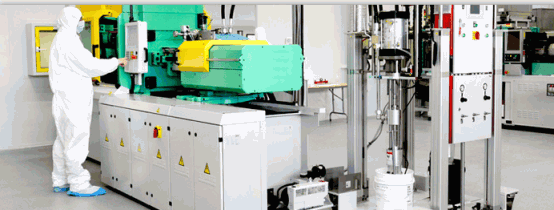

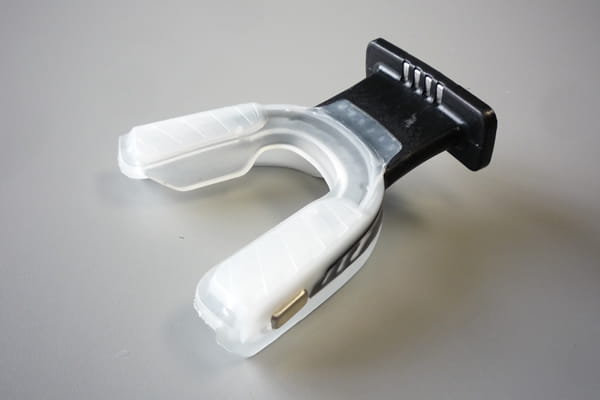

silicone overmolding products , insert molding or double injection molding , partly needing bond and sophisticated precision parts.The finished product ok rate is highest.



Spare from use of base primer , bond to different substrates;Short curing time;Easily pigmentable

1、Mix A and B with mxing ratio  A:B=1:1 and inject into the mold the mixed silicone, the injection must be full and complete.



2, Curing condition of silicone is suggested at  120 ℃/200S(Thickness 2mmm)



3,Test and determine the mold condition based on the thickness and size of silicone  .



4、Storage:Keep the product sealed and stored at 20℃-35℃ away from light and heat, shelf life for 6 months.

Package:20kg/barrel ,200kg/barrel
