Self Adhesive LSR  KL-F6050AB Shore Hardness (A):50±2 - Self adhesive liquid silicone
Self Adhesive LSR KL-F6050AB S...

KL-F6050AB,Self adhesive LSR , is addition type LSR , It has strong bond to thermoplastics like polycarbonate and does not stick to the mold featuring wi...

Product Specification:
Model No. :
Minimum Order Quantity :   20KG
Lead Time:5-10days
Payment Terms:   TT/Paypal
Package:   20kg/barrel ,200kg/barrel
Tel: +0086-138 -2374 -7978
Fax: 0086-755-81478372
E-mail: export@klbsilicone.com

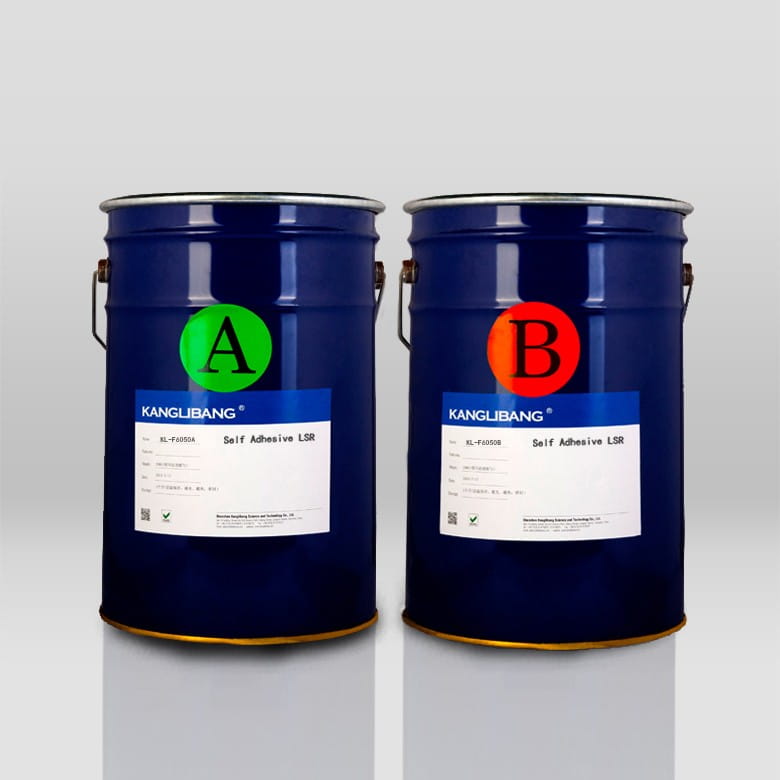

Self adhesive LSR  KL-F6050AB

LSR & PC/PET

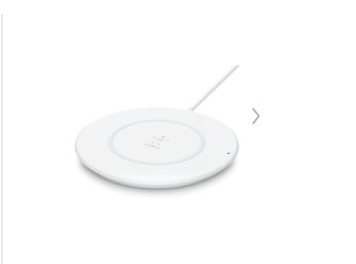

※Wireless chargers ,silicone precision electronic products

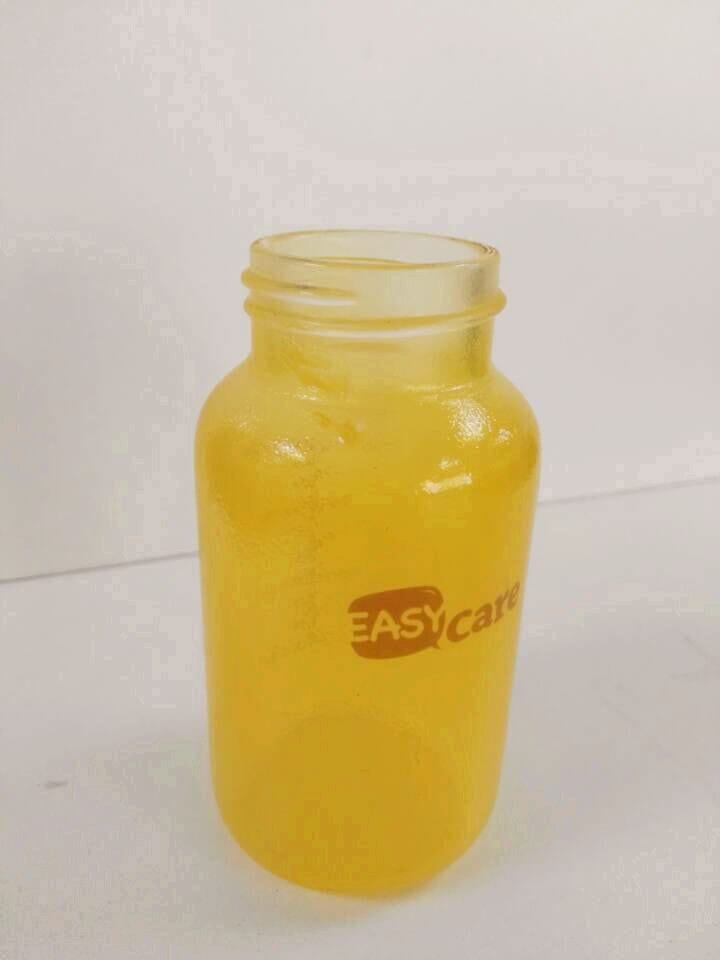

   ※Silicone medical products

※3C electronic products

Appearance A : Transparent gel   B: Milky white gel
Viscosity(mPa.s) GB-T 11409.8-1989 A : 5300000   B:6000000
Shore Hardness (A) 50±2
Tensile Strength(Mpa) ≥7.0
Tear strength(kN/m) ≥25
Elongation at break(%) ≥500
Curing condition TC10: 120℃*40S
  TC90:120℃*90S
Specifical gravity(g/cm3) 1.10±0.02
※Standard Description Viscosity is tested under room temperaturer 25℃

Maximise the productivity and reduce labour costs

Spare from use of base primer , bond to different substrates

silicone overmolding products , insert molding or double injection molding , partly needing bond and sophisticated precision parts.The finished product ok rate is highest.

1, Mix A and B with mxing ratio  A:B=1:1 and inject into the mold the mixed silicone, the injection must be full and complete.

2, Curing condition of silicone is suggested at  120 ℃/200S(Thickness 2mmm)

3,Test and determine the mold condition based on the thickness and size of silicone  .

4、Storage:Keep the product sealed and stored at 20℃-35℃ away from light and heat, shelf life for 6 months.

Package:20kg/barrel ,200kg/barrel
