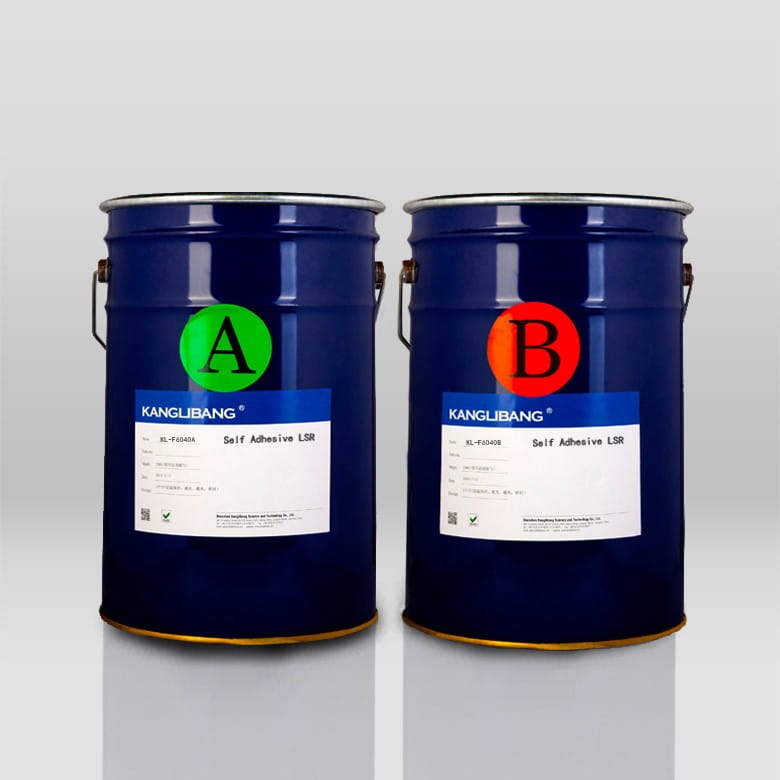

KL-F6040AB, Silicone bond to PC/PET
KL-F6040AB,Self adhesive LSR , is addition type LSR , It has strong bond to thermoplastics like polycarbonate and does not stick to the mold featuring with fast curing speed .

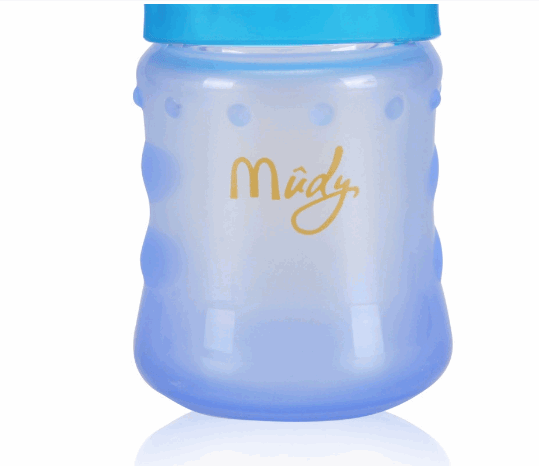

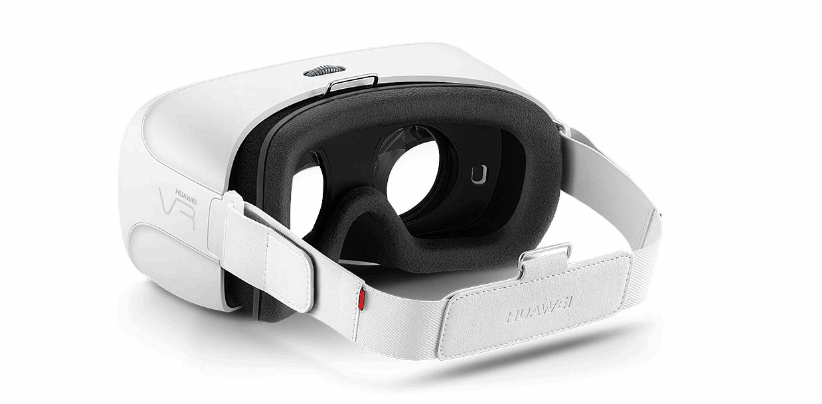

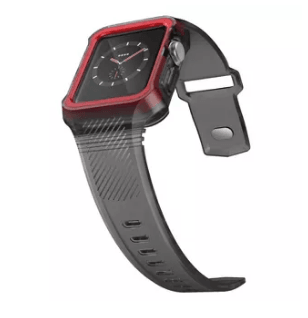

Widely used for radio charging and other electronic products、mobile phone protection shell、3C waterproof series electronic products、baby products.
Spare from use of base primer , bond to different substrates
Releasable from the metal mold
Easily pigmentable

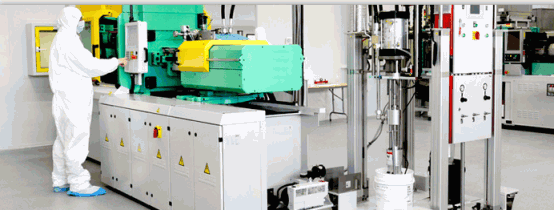

Maximise the productivity and reduce labour costs ，Short curing time，Suitable for silicone overmolding products , insert molding or double injection molding , partly needing bond and sophisticated precision parts，The finished product ok rate is highest.
|
Appearance |
A : Transparent gel B： Milky white gel |
|
Viscosity(mPa.s) GB-T 11409.8-1989 |
A : 5400000 B：4800000 |
|
Shore Hardness (A) |
40±2 |
|
Tensile Strength(Mpa) |
≥6 |
|
Tear strength（kN/m） |
≥25 |
|
Elongation at break(%) |
≥600 |
|
Curing condition |
TC10: 120℃*40S |
|
TC90:120℃*88S |
|
|
Specifical gravity(g/cm3) |
1.10±0.02 |
|
※Standard Description |
Viscosity is tested under room temperaturer 25℃ |
1, Mix A and B with mxing ratio A：B=1：1 and inject into the mold the mixed silicone, the injection must be full and complete.
2, Curing condition of silicone is suggested at 120 ℃/200S(Thickness 2mmm)

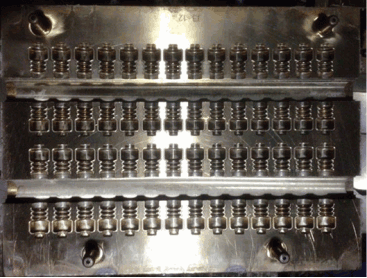

3,Test and determine the mold condition based on the thickness and size of silicone .
TDS: KL-F6404KL-F6040AB -
