Silicone adhesive for epoxy resin CL-24S-2D

CL-24S-2D Silicone to Epoxy Resin Adhesive
Special hot vulcanization adhesive for bonding unvulcanized silicone rubber and epoxy resin rods (power insulators & power fittings) during in-mold molding.
Features of CL-24S-2D Silicone to Epoxy Adhesive
1. Delivers excellent bonding performance to various silicone rubber compounds, including materials requiring or not requiring secondary vulcanization.
2. Single-component & single-coat formula, simple processing operation.
3. Bonded parts resist water, salt spray, chemicals, grease, solvents and other harsh service environments.

Technical Specifications of CL-24S-2D Silicone to Epoxy Adhesive
1. Appearance: Transparent liquid
2. Density (25°C): 0.80 g/cm³
3. Storage Condition: Room temperature, away from light
4. Hazard Classification: Non-hazardous
5. Dielectric Breakdown Voltage (with 4mm silicone sheath): 30 kV/cm²
6. Wide Temperature Resistance: -60 ~ 180°C
7. Shear Strength: 11 kg/cm²
8. Drying Condition: 2 hours at ambient temperature (or 10–15 mins at 80°C)
9. Solvent: Anhydrous ethanol
10. Shelf Life (unopened container at 25°C): 8 months

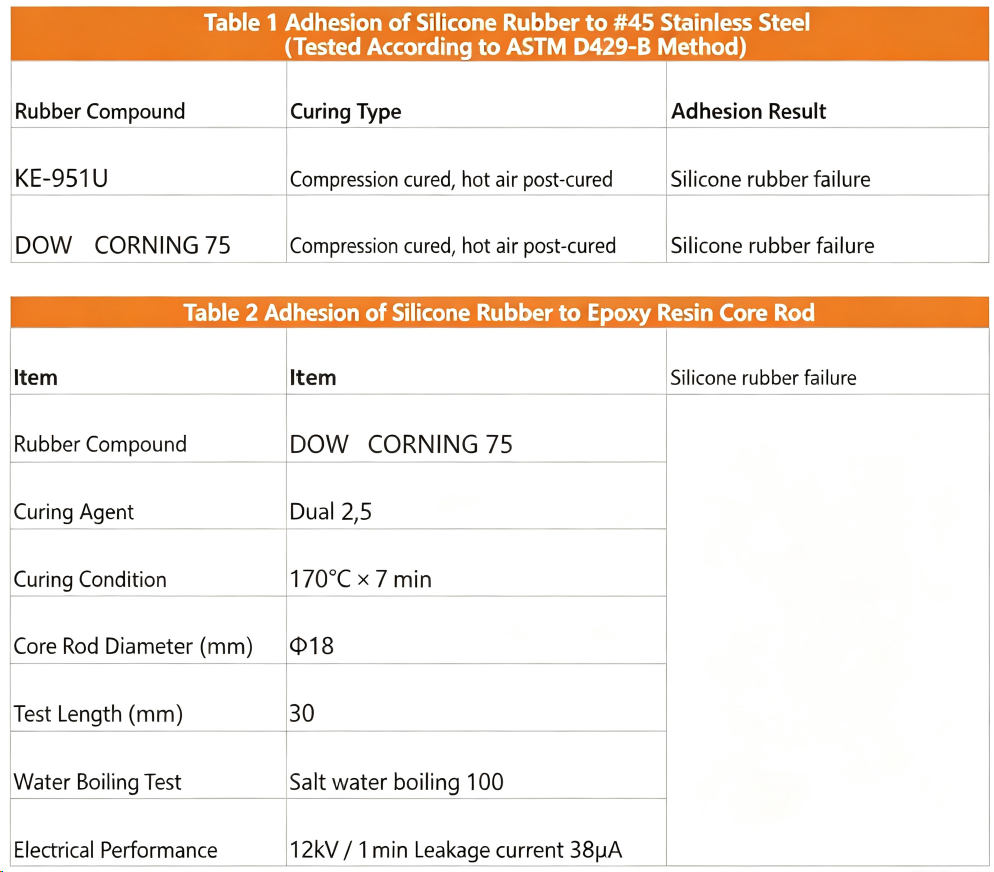

CL-24S-2D Test Data

Processing Instructions of CL-24S-2D Silicone to Epoxy Adhesive
Substrate Surface Pretreatment
Sandblast or sand the bonding surface mechanically for roughening, then degrease; alternatively clean the surface with alcohol.
1. Coating Method: Brushing, dipping or spraying
2. Drying: Air-dry for at least 5 minutes at room temperature; baking is not required
3. Standing Time: Complete bonding right after coating as much as possible, preferably on the same day. If contamination and exposure to high temperature & humid air are avoided, the standing time shall not exceed 5 days.
4. Vulcanization: Primary vulcanization follows the curing parameters of silicone rubber compound; secondary vulcanization temperature shall not exceed 250°C.

Precautions for CL-24S-2D Silicone to Epoxy Adhesive
1. Store in a dry and cool place, far from heat sources and open flames.
2. The solvent is highly volatile; tightly seal the container immediately after use.
3. The working area shall be fireproof and well ventilated. Avoid prolonged inhalation and long-term skin contact.
4. Slight turbidity of the adhesive will not affect bonding performance.

Package of CL-24S-2D Silicone to Epoxy Adhesive
1000 ml per bottle
